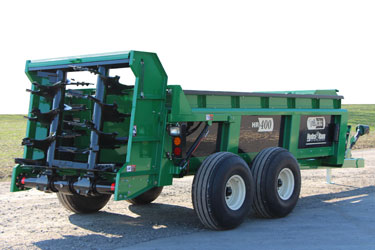

| HR 400 | |
 | |
| Capacity | 400 Bushels |
| Struck Level ASAE S324.1 | 249 cu. ft. |
| Heaped ASAE S324.1 | 418 cu. ft. |
| Load carrying capacity | 11.5 tons |
| Loading height | 64 in. |
| Inside width of box | 71 in. |
| Depth of box | 32 in. |
| Overall width w/ truck tires (tire size) | 116.5 in. (11 R22.5) |
| Overall width w/flotation tires (tire size) | 121.5 in. (16.5L-16.1) |
| Top of moving panel | 76 in. |
| Top of beaters | 89 in. |
| Overall length | 28 ft. 6 in. |
| Face of moving panel to beater centerline | 16 ft. 4 in. |
| Number of beaters | Two |
| Beater speed | 420 rpm |
| Fan diameter | 34.6 in. |
| Number of paddles on beaters | 42 |
| Tractor PTO HP (min. recommended) | 100 hp |
| Number of unloading speeds | Infinite from 0-16 ft./min. |
| PTO speed | 1000 |
| PTO shaft diameter | 1-3/8 in. or 1-3/4 in. |
| Number of end gate cylinders | 2 |
| Tare weight | 9,675 lbs. |
