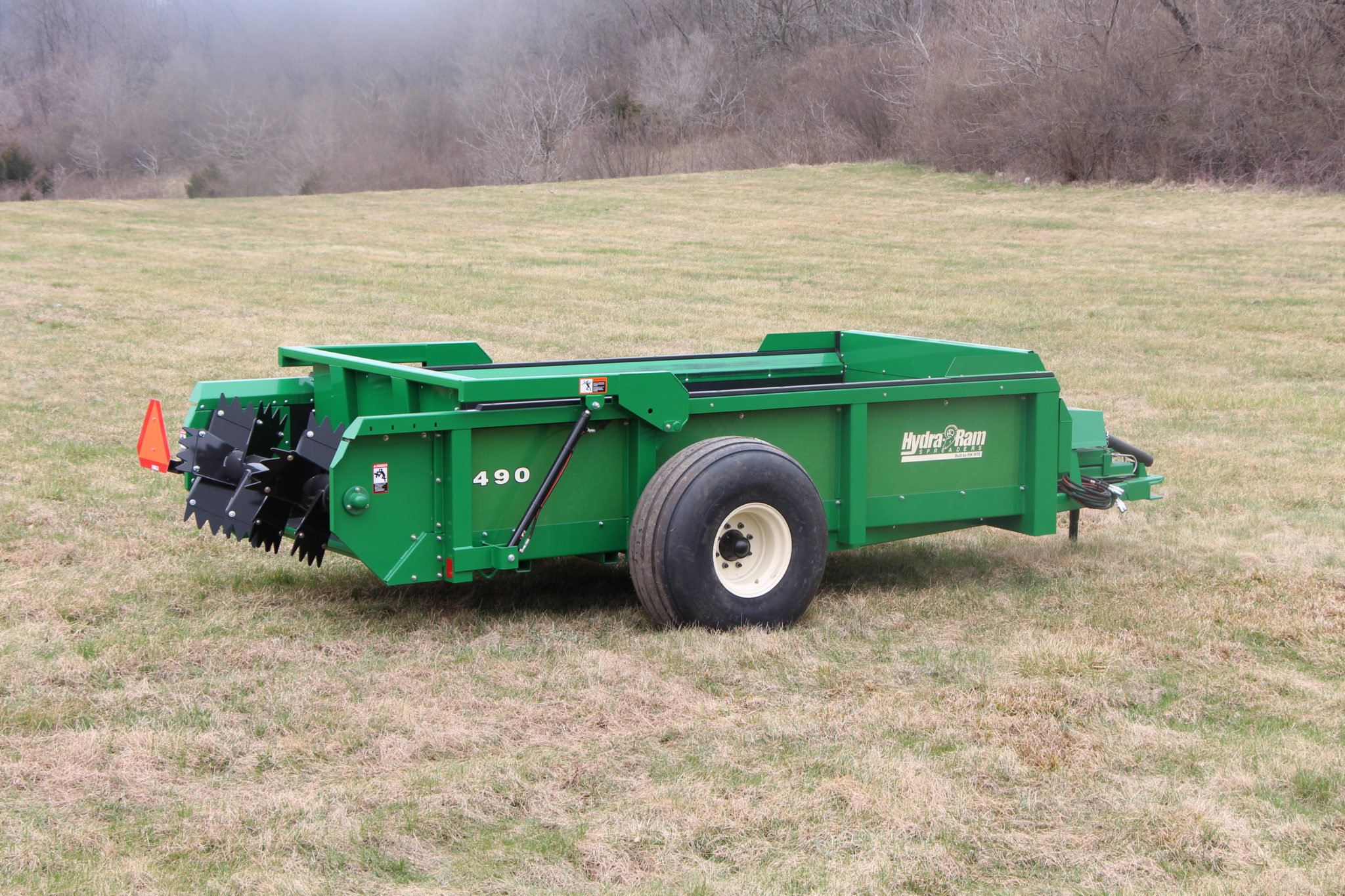

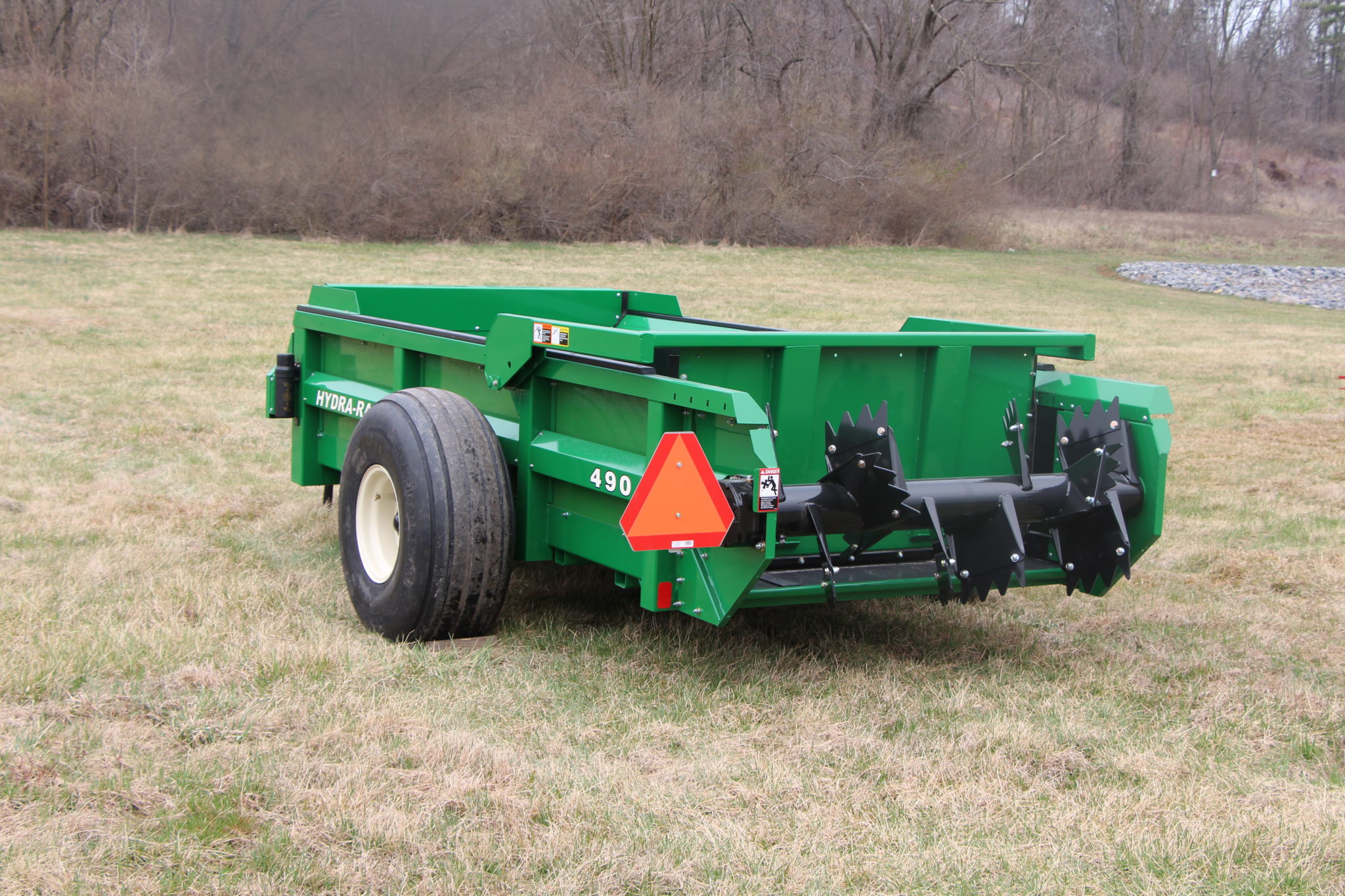

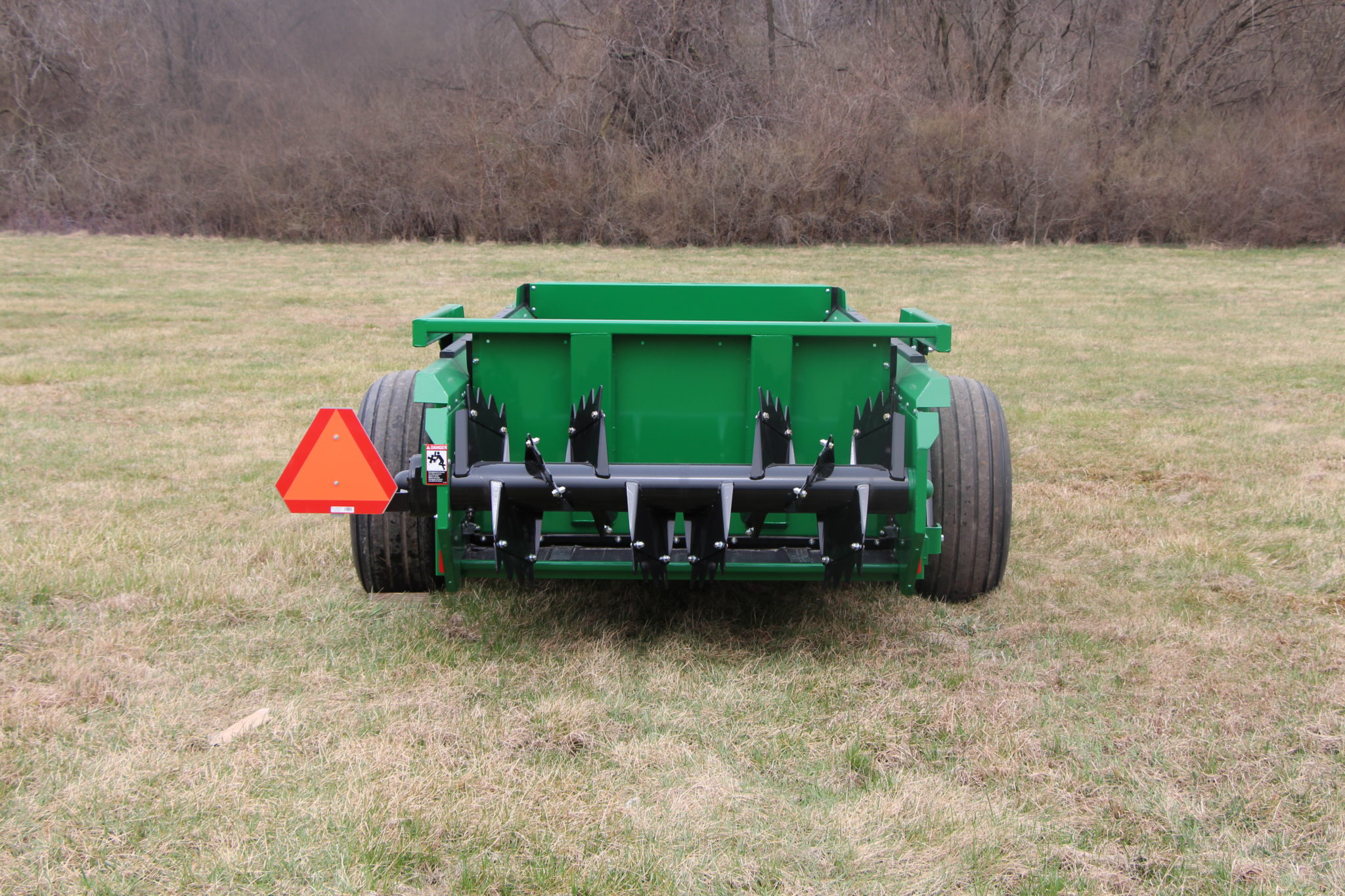

Designed for long-lasting performance, Pik Rite’s Hydra-Ram 490 manure spreader leads the market in 250-bushel capacity spreading equipment.
Efficient
•Two-Stage push to decrease compaction
•Road safety and field work lights
Durable
•Side wind jack w/ safety chain
•Poly-laminate floor & sides
•Stainless steel hydraulic tubing
Operator Friendly
•All bearings have easy access grease fitting banks
•Hydraulic metering end gate contains free flowing material
•Available in traditional green, industrial yellow, red or blue
For more information or to purchase the Pik Rite 490 Spreader, please contact Pik Rite’s team at 800-326-9763 or sales@pikrite.com.
•250 bushel capacity
•One of the original designs, it’s still a favorite of returning customers
•Horizontal beater system with optional upper beater
•Optional slurry pan
•Proudly made in the USA!
Capacity | 250 Bushels |
Struck Level ASAE S324.1 | 147 cu. ft. |
Heaped ASAE S324.1 Heaped w/upper beater |
206 cu. ft. 249 cu. ft. |
Load carrying capacity Loading height |
6.5 tons 45 in. |
Inside width of box | 61-3/4 in. |
Depth of box | 28 in. |
Overall width w/truck tires (tire size) Overall width w/flotation tires (tire size) |
8 ft. 1-1/2 in. (10.00-20) 8 ft. 9 in. (16.5L-16.1) |
Top of moving panel | 11 ft. 5 in. (gate closed) |
Top of beaters | 38 ft. 4 in. |
Max overall length | 30 ft. |
Face of moving panel to beater centerline |
12 ft. 6 in. |
Number of beaters | 1 or 2 |
Beater speed | 394 RPM |
Upper beater speed | 284 RPM |
Fan diameter (Upper beater) | 27 in. (13-1/4 in.) |
Number of paddles on beaters | 12 |
Tractor PTO HP (min. recommended) | 60 HP |
Number of unloading speeds | Infinite from 0-16 ft./min. |
PTO speed | 540 RPM |
PTO shaft diameter Number of end gate cylinders Tare weight |
1-3/8 in. One 3,360 lbs. |
