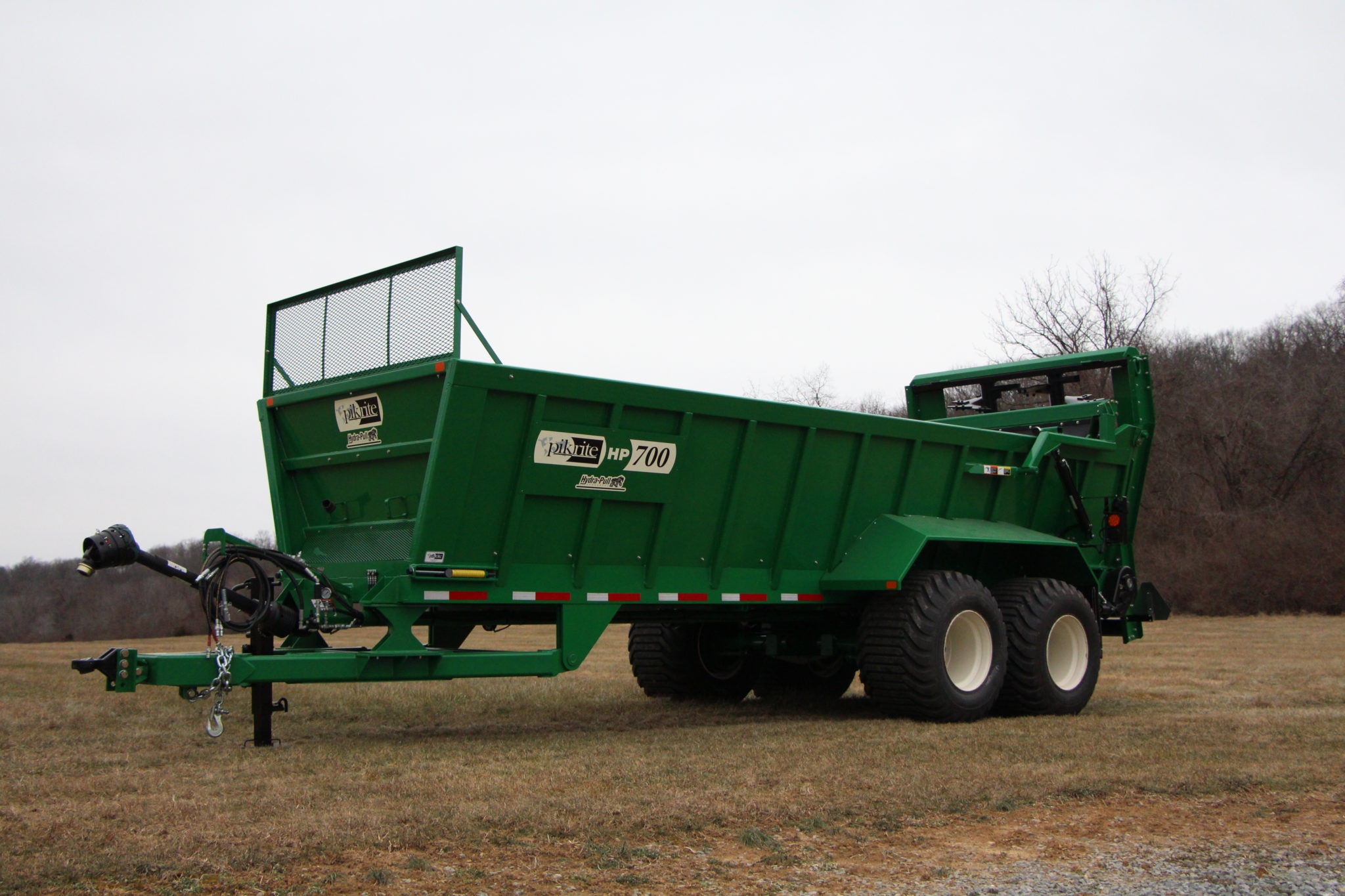

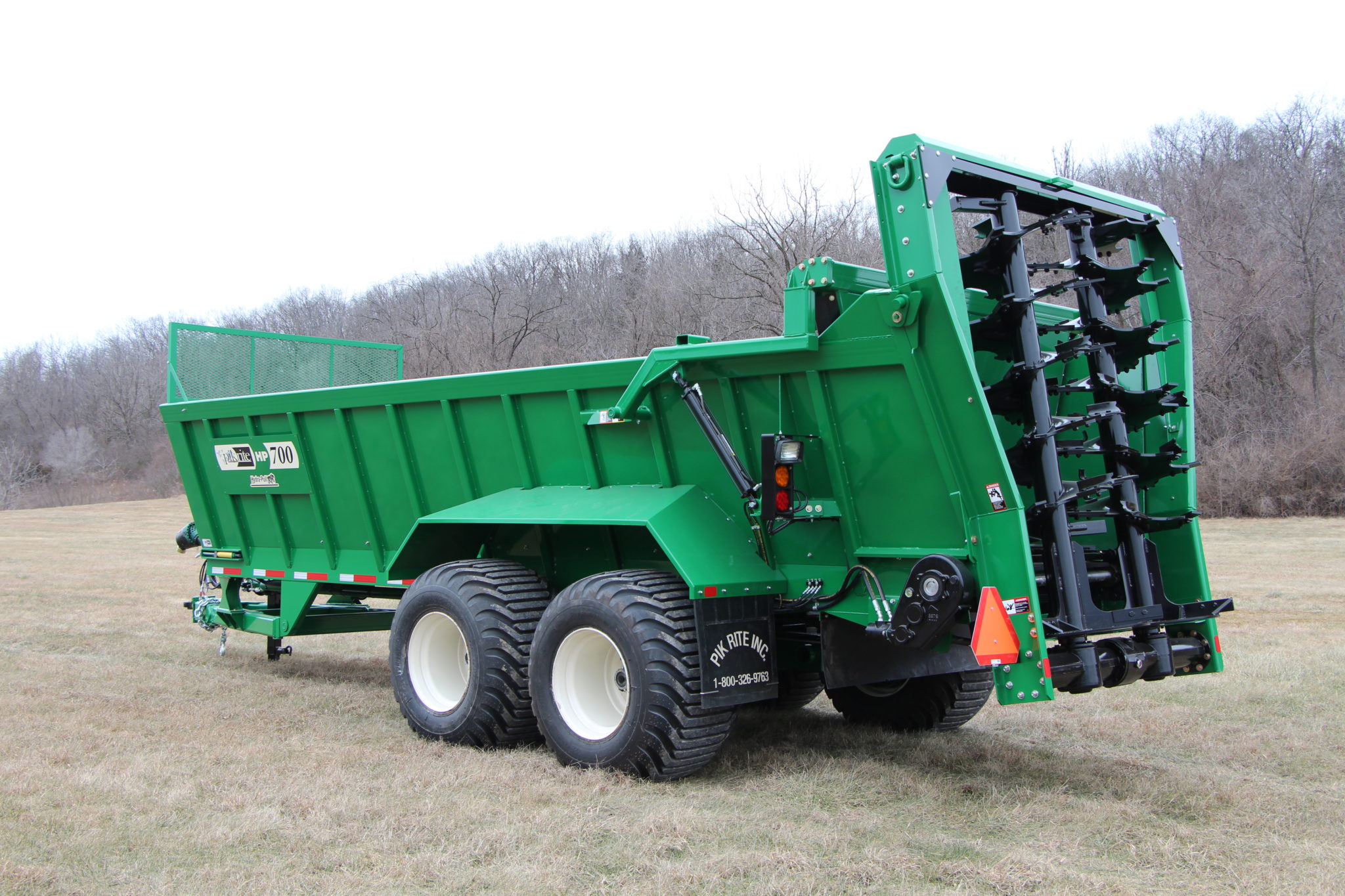

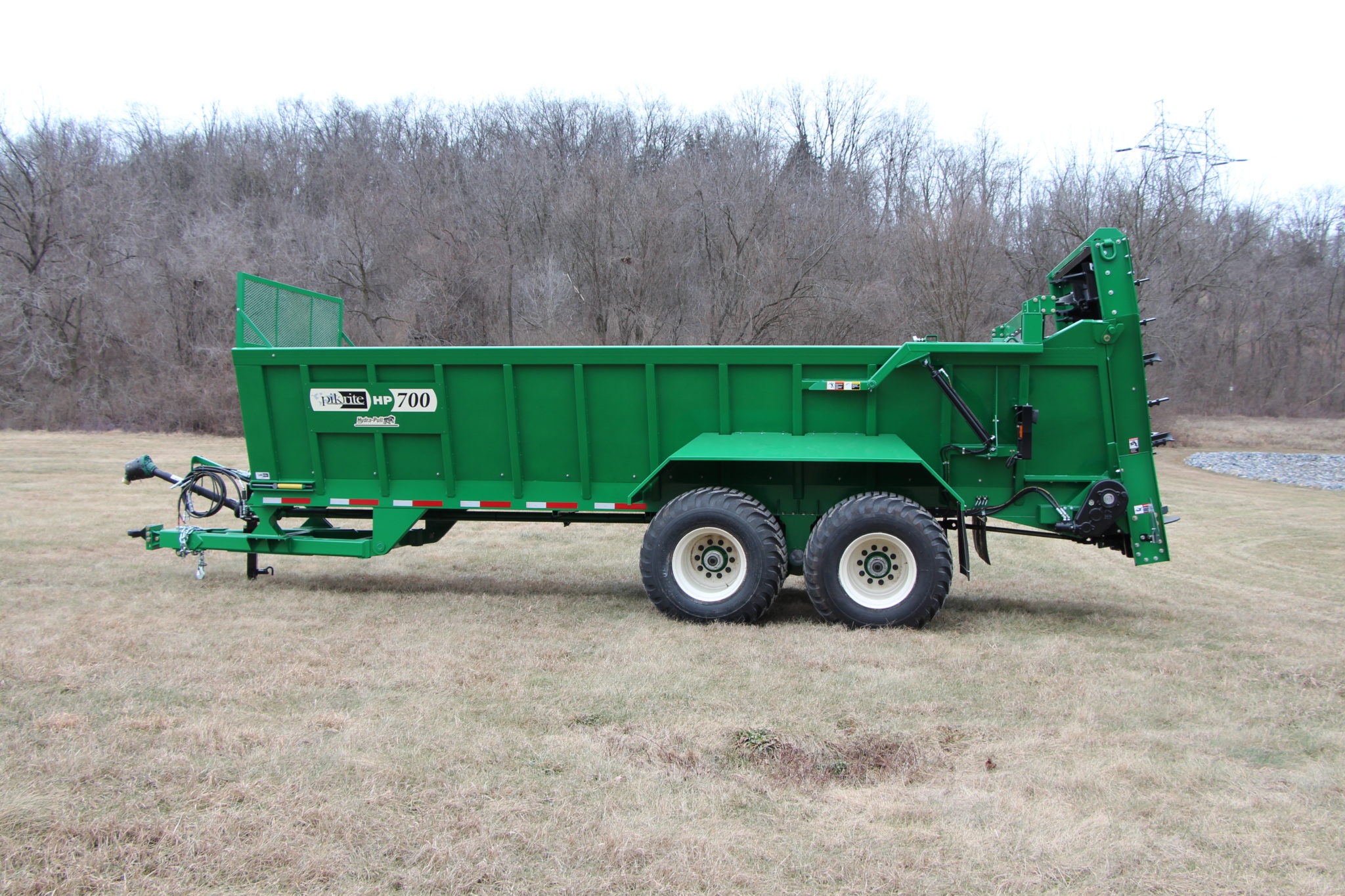

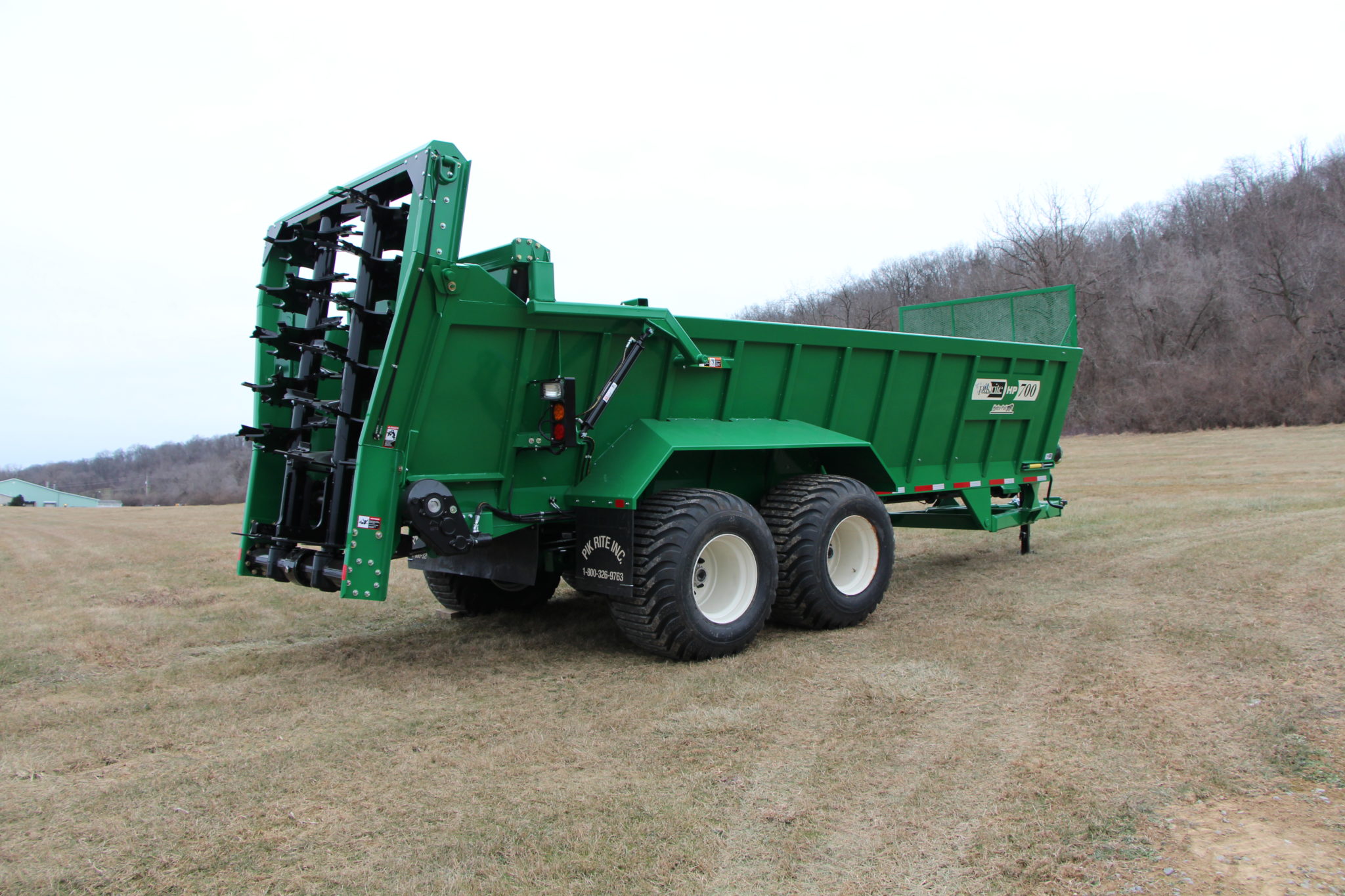

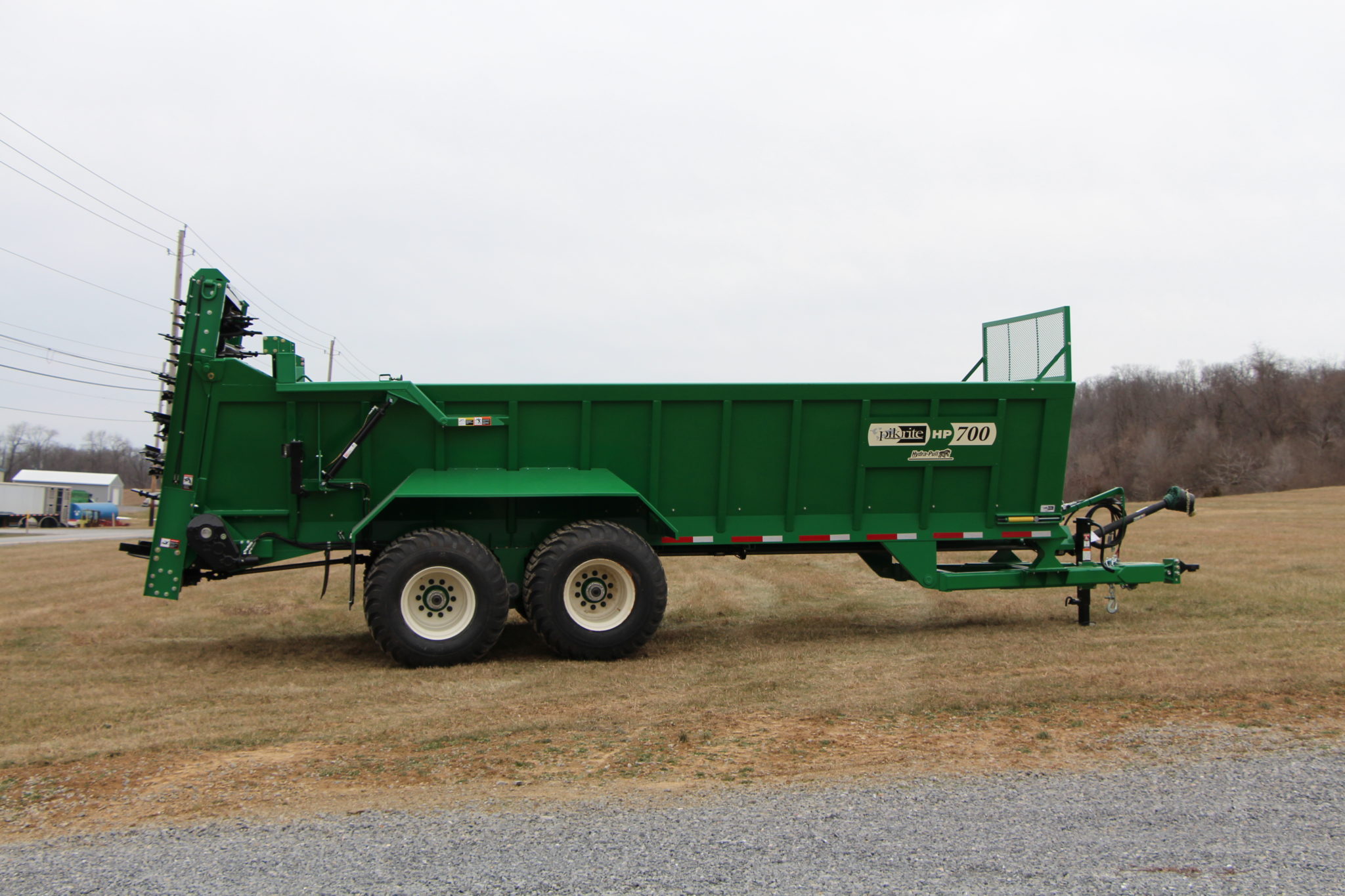

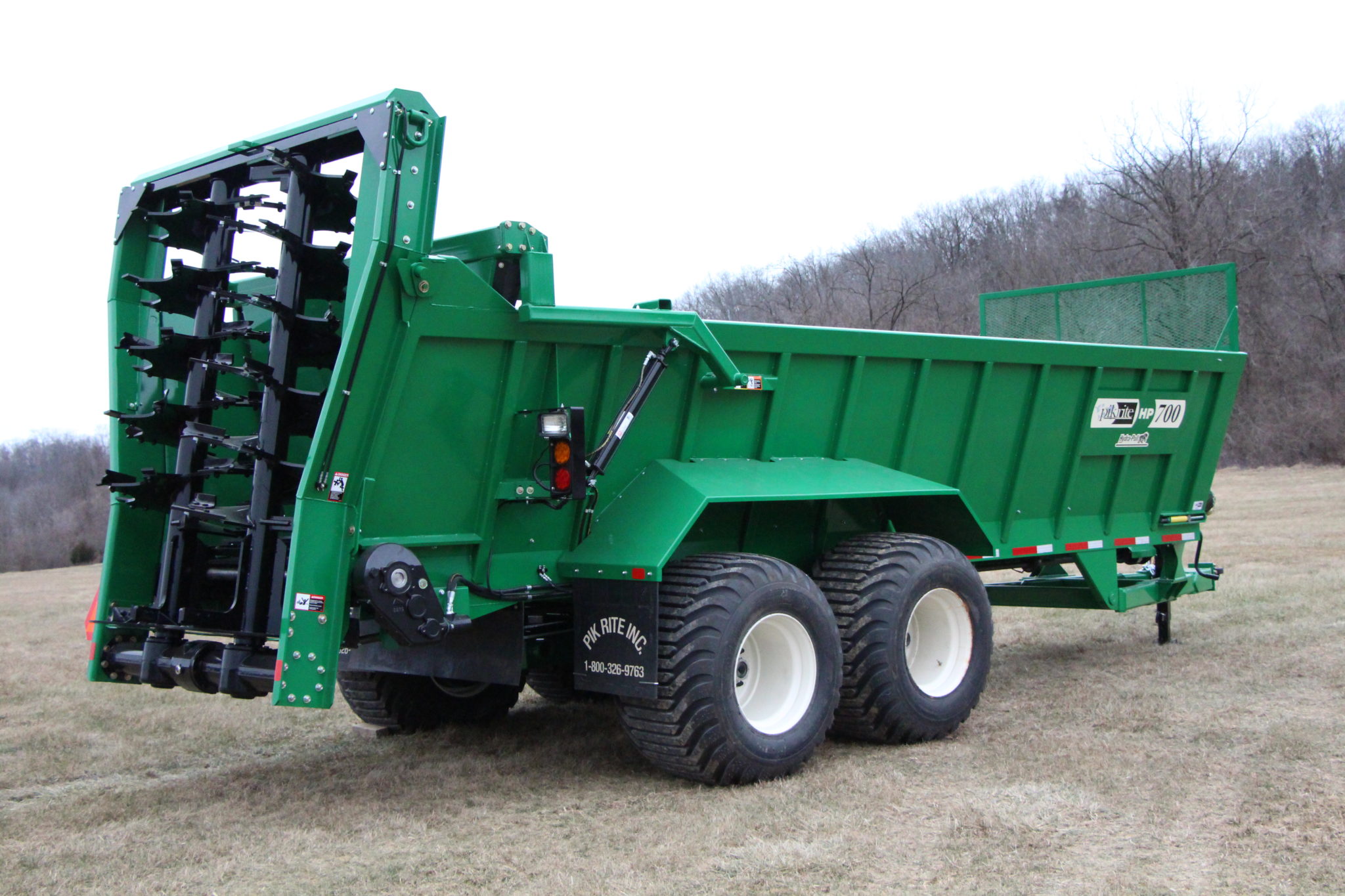

This 700-bushel mid-size spreader excels with a variety of materials.
Efficient
•Vertical beaters shred heavy material and provide a wide and consistent spread pattern
•Compost beaters spread light material in a wide pattern at a controlled rate
•Adjustable apron speed (0-16 ft. per min.)
•Heavy duty walking beams
•Road safety and field work lights
Durable
•Side wind jack w/ safety chain
•Robust pintle chain with stainless steel pins
•Spring loaded take-up bearings allow for chain flex without damage
Operator Friendly
•All bearings have easy access grease fitting banks
•Sloped sides allow for easier loading
•Hydraulic metering end gate contains free flowing material
•Available in traditional green, industrial yellow, red or blue
For more information or to purchase the Pik Rite HP 700 Spreader, please contact Pik Rite’s team at 800-326-9763 or sales@pikrite.com.
•700 bushel capacity
•Direct drive beater system
•Heavy duty pintle chain
•Metering guillotine endgate
•Quick detach beaters (interchangeable for compost or vertical beaters)
•Weigh scale installation ready
•Flared sides with optional side extensions
•Clutch protected drivelines (slip/over-run)
•Proudly made in the USA!
Capacity | 700 Bushels |
Struck Level ASAE S324.1 | 463 cu. ft. |
Heaped ASAE S324.1 | 709 cu. ft. |
Load carrying capacity | 19.2 tons |
Inside width of box | 91 in.-60 in. |
Depth of box | 44-1/2 in. |
Overall width w/flotation tires (tire size) | 11 ft. (700/40-22.5) |
Overall height | 10 ft. 8 in. (gate closed) |
Overall length | 32 ft. 3 in. |
Bed length | 24 ft. |
Loading height | 7 ft. 6 in. |
Number of beaters | 2 |
Beater speed | 420 RPM. |
Fan diameter | 34-5/8 in. |
Number of paddles on beaters | 70 |
Tractor PTO HP (min. recommended) | 185 HP |
Number of unloading speeds | Infinite from 0-15.21 ft./min. |
PTO speed | 1000 |
PTO shaft diameter | 1-3/4 in. |
Number of end gate cylinders Tare Weight |
2 16,000 lbs. |
